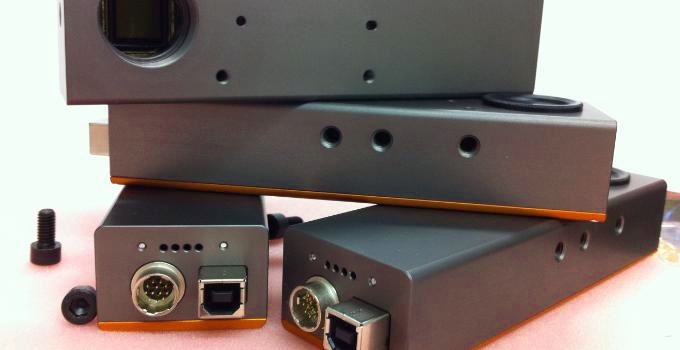

    heliCamTM C3 - Fast Lock-In Camera

    The lock-in camera was originally developed for low coherence interferometry, but the heliSenseTMS3sensor and the camera board have found new life with a variety of applications other than OCT, for example, pump-probe spectroscopy. For ease of integration, the Heliotis' core technology is now available as a rigid camera, capable of capturing and processing more than 1 million 2D-images per second.

    Features

    • Robust and compact aluminium housing

    • C-mount for objectives

    • USB data interface

    • Comprehensive software package

      - OCT viewer

      - Driver for LabVIEW

    Software Development Kit

    The heliCam C3 comes with software drivers and programming examples for

    • LabView

    • C++

    • Python

    Specification

    ParameterValue
    Detector technologyCMOS 180 nm process with pinned photodiode
    Die Size19.71 mm x 16.89 mm
    Number of Columns300, (center 280 usable, 2x10 columns are test columns)
    Number of Rows300, (center 292 usable, 2x4 rows are test rows)
    Total number of pixels90’000
    Column Pitch ΔXpixel39.6 μm
    Row Pitch ΔYpixel39.6 μm
    Photodiode dim. X ΔXphotodiode22.2 μm
    Photodiode dim. Y ΔYphotodiode12.7 μm
    Photodiode area282 μm2
    Optical fill factor18.0 % without micro-lenses
    Pixel Field Width11.9 mm
    Pixel Field Height11.9 mm
    Max. External Frame Rate3.8 kHz (2 x 10bit per frame)
    Max. Demodulation Frequency250 kHz (Equals an internal rate of 1M frames per second)
    Output Resolution10 bit
    Quantum Efficiency η20-60% between 330 and 400 nm

    60-80% between 400 and 720 nm

    60-20% between 720 and 900 nm
