  • 参考报价:电议
    型号:
    产地:德国
    在线咨询
  • 详细介绍:

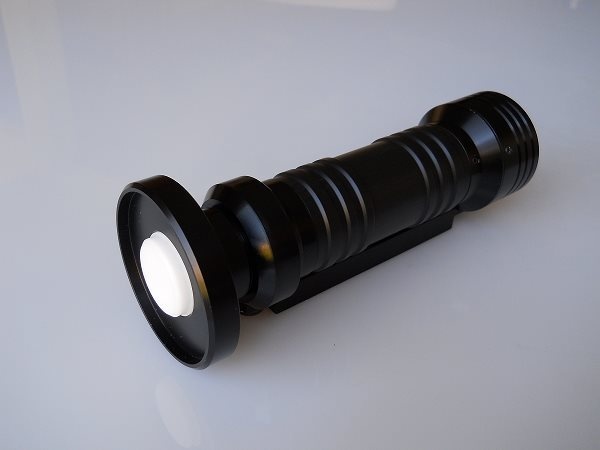

    CR-110 可以根据客户选择的取样频率,进行快速的数据采集。是理想闪烁分析仪器,适用与LED灯具、背光、显示器、脉冲光源的闪烁特性分析。

    显示器闪烁特性测试兼容IDMS、ICDM测试标准,包含FFT算法计算计算闪烁主频率、加权闪烁水平等,匹配人眼对闪烁的直观感受

    Wavelength Range380 – 780 nm
    Luminance Range0.0002 fL to 15000 fL

    0.0002 fL @ Signal to Noise Ratio > 10, 20 seconds exposure

    0.001 fL @ Signal to Noise Ratio > 10, 0.5 second exposure

    0.001 fL @ Signal to Noise Ratio > 100, 20 seconds exposure

    1500 fL @ Signal to Noise Ratio > 8000, 1 millisecond exposure

    Luminance Accuracy± 2 % @ 0.1 fL, 0.4 second exposure
    Luminance Repeatability0.2 % @ 0.1 fL, 0.4 second exposure

    1.5 % @ 0.01 fL, 0.5 second exposure

    1.5 % @ 0.001 fL, 20 seconds exposure

    Polarization error:≤ 0.1 %
    ADC Resolution:16 bits
    Synchronization frequencies:10 - 500 Hz (Custom Synchronization from 10 Hz to 10 KHz available)
    Exposure Time Range:1 ms to 20 seconds
    Power Requirements5V, 120 mA (600 mW) via USB 2.0
    InterfaceUSB 2.0, Ethernet, RS-232
    Weight / Mass12oz. (0.34 Kg.)

    时间特性

    Electro-optical Bandwidth:1 MHz.
    Maximum Sampling Rate:333 K samples per second
    Minimum Sampling Period:3μ seconds
    ADC resolution12 bits
    Number of ranges4 manual (Auto-Range available)
    Noise FilteringProprietary smart noise filter technology
