参考报价：电议 型号：
产地：法国 在线咨询
|

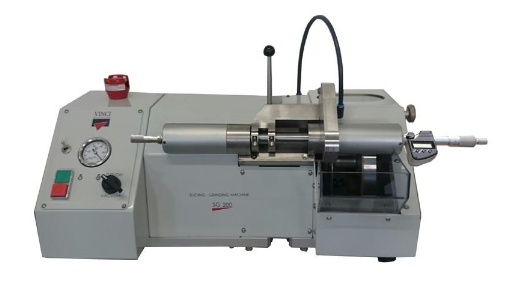

SG200是一台半自动装置，能够快速，准确地同时准备两个薄片。该设备包括一个金刚石切割锯片，一个金刚石砂轮和一个多功能的真空吸盘，吸盘在切片和研磨操作过程中吸附薄片，适用于各种尺寸的样品加持。通过手动可将样品直接从切割刀片转移到砂轮上，从而简化了工序并节省了时间。切片的厚度可通过螺母调节，另外自带一个精密的千分尺精确测量薄片的磨削厚度。
重量：50公斤
尺寸：640x340x350毫米
电源：220VAC，50/60Hz
兼容冷却剂：水
锯片直径：200毫米（8英寸）
磨轮直径：200毫米（8英寸），粒径：46
试样尺寸：2个30×45厘米或者1个60x45厘米
切片厚度：100-150微米
设计紧凑，操作简单
切片磨片二合一
快速和准确的制样
| |
The SG200 is a semi-automatic device able to concomitantly prepare two thin sections rapidly and with great accuracy. The apparatus consists of a diamond-cutting blade， a diamond-grinding wheel and a versatile vacuum chuck for various slide sizes. The latter grasps the thin section during slicing and grinding operations. The sample is directly transferred from the cutting blade to the grinding wheel， by virtue of a manually rotated wheel， thereby facilitating the procedure and saving time. An adjustable screw controls the slicing thickness while a precision micrometer monitors grinding thickness of thin section.
|
