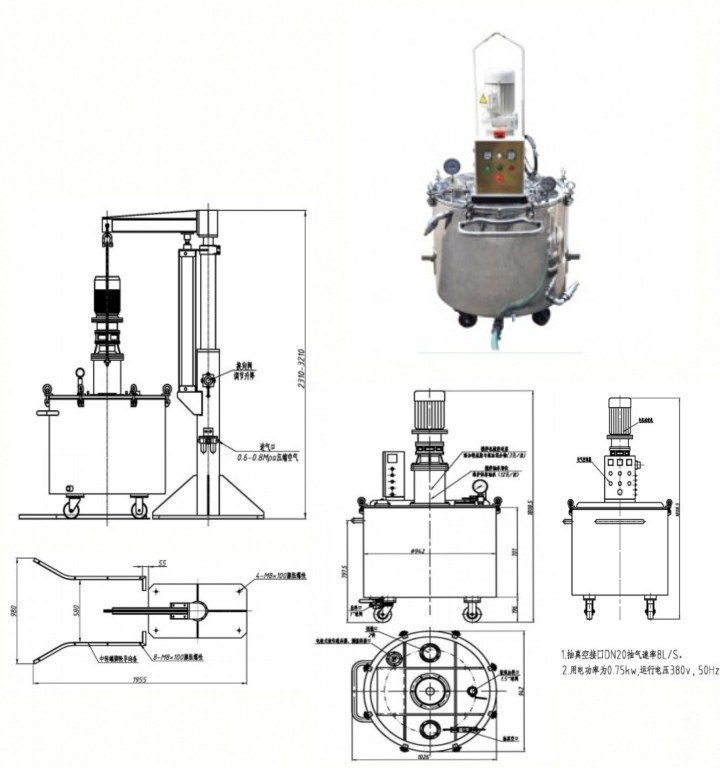

设备简介 Machine introduction

本设备主要用于电池浆料的周转，存放，搅拌，二次脱泡，涂布前防止沉淀。

The machine is used for the transfer, storage, mixing and twice defoaming of battery sizes, prevent the sizes from precipitation.

1. 在周转桶里抽真空，把真空搅拌机里的物料提取到周转搅拌桶里。

Vacuum the transfer tank, extract the material from vacuum mixer

2. 打开周转桶电机搅拌，以防止密度大的物料沉淀。

Turn on the mixing motor, avoid the precipitation of large density material;

3. 给周转桶里加氮气，把物料压送到涂布机；或用隔膜泵输送至涂布机。

Fill nitrogen into the transfer tank, press transmission the material to coating machine; or transfer the material by pneumatic diaphragm pump;

4. 适用范围:锂离子电池正、负极浆料的制作以及其它物料的配制。

Application: manufacturing of Lithium battery positive pole sizes & negative pole sizes as well as other materials;
